| Allmänt |

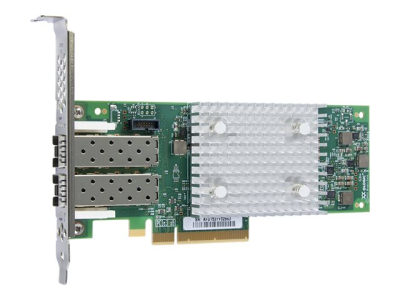

| Typ av enhet | Värdbussadapter |
| Formfaktor | Instickskort - låg profil |
| Gränssnittstyp (buss) | PCI Express 3.0 x8 |
| Version av PCI-specifikation | PCIe 3.0 |
| Nätverk |
| Portar | 32Gb Fibre Channel x 2 |
| Anslutningsteknik | Kabelansluten |
| Datalänkprotokoll | 32Gb Fibre Channel |
| Fibre Channel | FC-Tape, FCP-4, FC-PI-5, FC-FS-4, FC-PI-6, FC-GS-8, FC-NVMe, FC-LS-4 |
| Max överföringsavstånd | 100 m |
| Kapacitet | Samtidiga inloggningar: 2048 |
| Protokoll för administration på distans | SMI-S |
| Funktioner | UEFI-support, BIOS-support, FEC, Support för Transparent (N_Port ID Virtualization - NPIV-läge), QLogic StorFusion, LCB, RDP |
| Expansion/Anslutning |
| Gränssnitt | 2 x 16Gb Fibre Channel - FC |
| Diverse |
| Standarder som följs | EN 61000-3-2, EN 61000-3-3, EN55024, CB, ICES-003 klass A, CSA C22.2, UL 60950-1, IEC 60950-1, EN 60950-1, BSMI CNS 13438, VCCI Class A, FCC CFR47 Part 15 A, EN 55032, AS/NZS Class A, KC-RRA Class A |
| Dimensioner och vikt |
| Bredd | 6.94 cm |
| Djup | 16.8 cm |
| Miljöparametrar |
| Min temperatur vid drift | 0 °C |
| Max temperatur vid drift | 55 °C |
| Luftfuktighet vid drift | 10 - 90% |
| Kompatibilitetsinformation |
| Designat för | Cisco UCS C220 M4S (Not sold Standalone), C220 M5 Server (Large Form Factor Disk Drive Model), C220 M5SN SFF, C240 M5 LFF Rack Server, C240 M5 LFF Rack Server (Tracer), C240 M5 Rack Server for Microsoft Azure Stack, C240 M5 SFF Rack Server, C480 M5 Standard Base Chassis, Smart Play C220 M4 SFF Performance, SmartPlay Select C220 M4S (Not sold Standalone ), SmartPlay Select C220 M5 High Core 1, SmartPlay Select C220 M5 Standard 1, SmartPlay Select C220 M5 Standard 2, SmartPlay Select C220 M5S Basic 1 (Tracer), SmartPlay Select C220 M5S Standard 1 (Tracer), SmartPlay Select C220 M5SX, SmartPlay Select C220 M5SX (Tracer), SmartPlay Select C220 M5SX Advanced 1 (Tracer), SmartPlay Select C220 M5SX Advanced 2, SmartPlay Select C220 M5SX Advanced 2 (Tracer), SmartPlay Select C220 M5SX Advanced 3, SmartPlay Select C220 M5SX Advanced 4, SmartPlay Select C220 M5SX Advanced 5, SmartPlay Select C220 M5SX Basic 1, SmartPlay Select C220 M5SX Basic 2, SmartPlay Select C220 M5SX Basic 3, SmartPlay Select C220 M5SX Basic 4, SmartPlay Select C220 M5SX Expansion Pack 2, SmartPlay Select C220 M5SX High Core 2, SmartPlay Select C220 M5SX Standard 2, SmartPlay Select C220 M5SX Standard 2 (Tracer), SmartPlay Select C220 M5SX Standard 3, SmartPlay Select C220 M5SX Standard 4, SmartPlay Select C240 M5 Advanced 2, SmartPlay Select C240 M5 Standard 1, SmartPlay Select C240 M5L High Frequency 1, SmartPlay Select C240 M5L High Frequency 2, SmartPlay Select C240 M5L Standard 1, SmartPlay Select C240 M5L Standard 2, SmartPlay Select C240 M5L Standard 3, SmartPlay Select C240 M5L Standard 4, SmartPlay Select C240 M5SX, SmartPlay Select C240 M5SX (Tracer), SmartPlay Select C240 M5SX Advanced 1, SmartPlay Select C240 M5SX High Frequency 2, SmartPlay Select C240 M5SX Standard 2, SmartPlay Select C240 M5SX Standard 3, SmartPlay Select C240 M5SX Standard 4, SmartPlay Select C240 M5SX Standard 5, SmartPlay Select C240 M5SX Standard 6 |
|
