Broadcom NetXtreme E-Series N210P - Nätverksadapter - OCP 3.0 - 1Gb Ethernet / 10Gb Ethernet SFP+ x 2

Broadcom NetXtreme E-Series N210P - Nätverksadapter - OCP 3.0 - 1Gb Ethernet / 10Gb Ethernet SFP+ x 2 BCM957412N4120C
Dolt pris
Information


Beställningsvara
BrocadeTillverkareBrocadeArtnr
BCM957412N4120C
EAN
0650861000307

  • Dual-port pluggable media interface, which can connect to a 10G SFP+ optical transceiver or a copper direct attach cable
  • Fully compliant with the SFF-8402 standard
  • X8 PCI Express 3.0 compliant
  • SR-IOV with up to 128 virtual functions (VFs)
  • Function-Level Reset (FLR) support
  • TruFlow flow processing engine
  • Virtual Network Termination - VXLAN, NVGRE, Geneve, GRE encap/decap
  • VSwitch Acceleration
  • Tunnel-aware stateless offloads
  • DCB support - PFC, ETS, QCN, DCBx
  • RDMA over Converged Ethernet (RoCE)
  • Network Controller Sideband Interface (NC-SI)
  • SMBus 2.0
  • MCTP over SMBus
  • PCIe-based UART and KCS
  • Jumbo frames up to 9 KB
  • Advanced congestion avoidance
  • Multiqueue, NetQueue, and VMQ
  • IPv4 and IPv6 offloads
  • TCP, UDP, and IP checksum offloads
  • Large send offload (LSO)
  • Large receive offload (LRO)
  • TCP segmentation offload (TSO)
  • Receive-side scaling (RSS)
  • Transmit-side scaling (TSS)
  • VLAN insertion/removal
  • Interrupt coalescing
  • Network boot - PXE, UEFI
  • ISCSI boot
  • Wake-on-LAN (WOL)
  • MSI and MSI-X
  • Conforms to the OCP 3.0 Design Specification Version 1.00

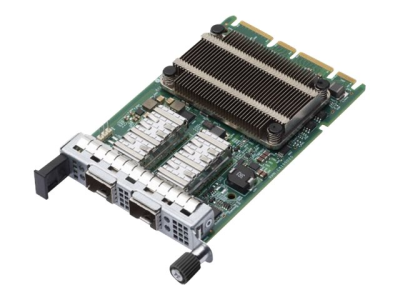

The Broadcom BCM957412N4120C is a dual-port 10 Gb/s PCI Express 3.0 x8 network adapter designed to the Open Compute Project (OCP) 3.0 Design Specification in small form factor with two SFP+ network connectors. The adapter supports SFP+ optical modules and copper direct attach cables. The network adapter uses the Broadcom BCM57412 25GbE MAC controller with an integrated dual-channel 10GbE SFI transceiver.
